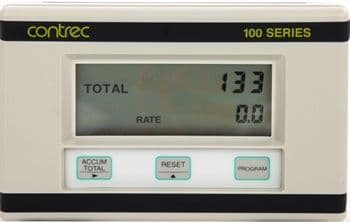

104D Field Mounting Rate Totaliser


Our Price: £340.00
Description

The display is wall mounting as standard but we can supply it fitted to the turbine via a stainless steel bracket at a price of £42.00+VAT


The 104D Field Mounting Rate Totaliser requires no external power and is designed to operate with turbine, positive displacement and paddlewheel flowmeters in applications such as irrigation systems and pipelines, and as a replacement for mechanical registers. The 104D is loop powered via a 4-20mA output. The 104D Rate Totaliser is housed in a rugged yet attractive IP67 (Nema 4X) rated polycarbonate enclosure which is completely watertight. This enables the instrument to be mounted directly on the flowmeter, panel mounted or wall mounted using a special universal bracket. A 2″ pipe mounting bracket is also available. K-factor, decimal point positions, filter constants and time base are fully user programmable. Rate and Totals can also be displayed in different engineering units such as gallons per minute and barrels.

  • Displays Rate, Total and Accumulated Total
  • Loop DC powered
  • Watertight to IP67 (Nema 4X)
  • Wall or Pipe mounting
  • Fully programmable
  • 4-20mA Output
  • High & low alarms
  • CE compliant
